Brand Awareness

Brand Awareness Study

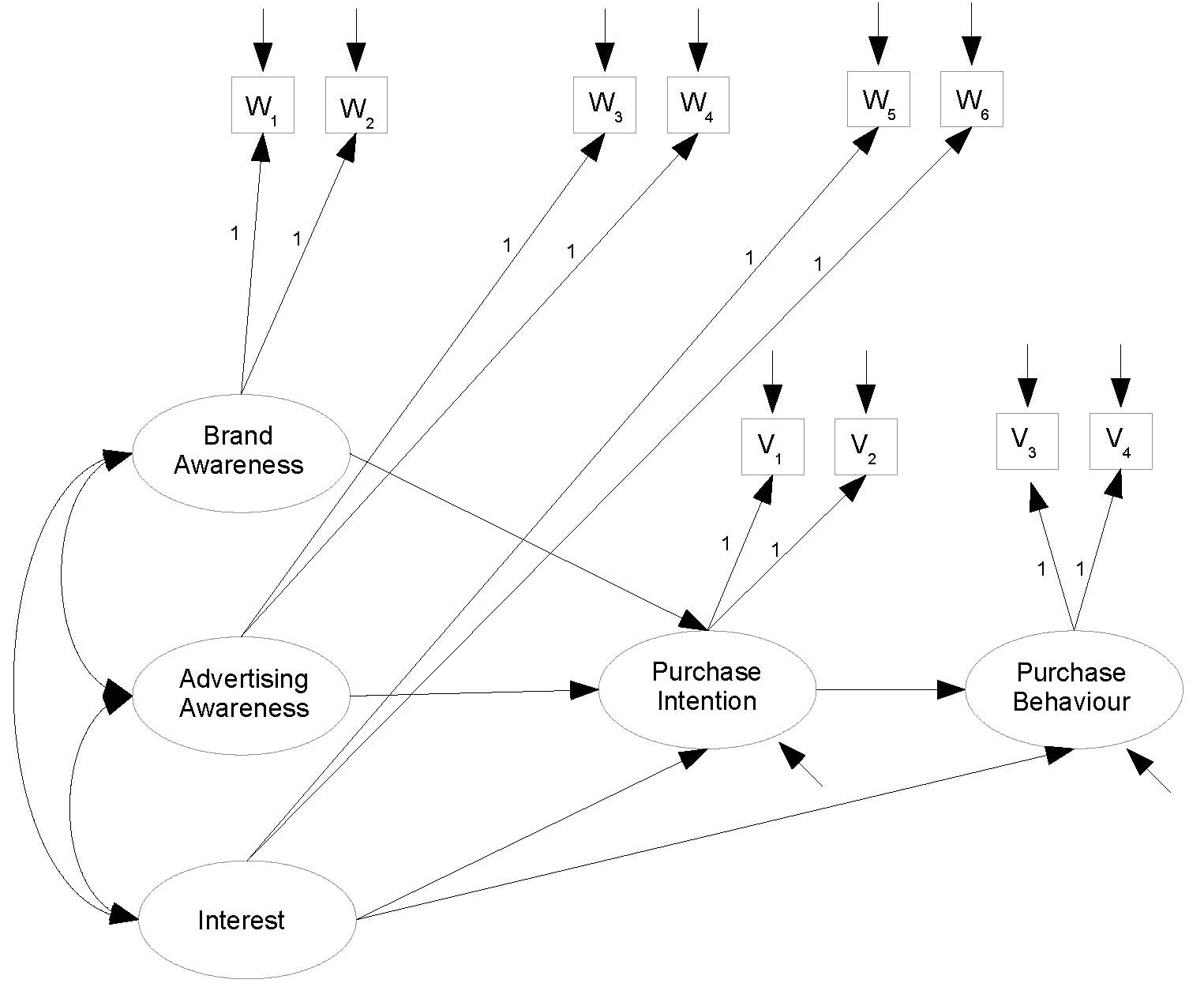

A major Canadian coffee shop chain is trying to break into the U.S. Market. They assess the following variables twice on a random sample of coffee-drinking adults. The two measurements of each variable are conducted at different times by different interviewers asking somewhat different questions, in such a way that the errors of measurement may be assumed independent. The variables are

Brand Awareness: Familiarity with the coffee shop chain
Advertising Awareness: Recall for advertising of the coffee shop chain
Interest in the product category: Mostly this was how much they say they like doughnuts.
Purchase Intention: Expressed willingness to go to an outlet of the coffeeshop chain and make an order.
Purchase behaviour: Reported dollars spent at the chain during the 2 months following the interview, based on a later telephone interview.

All variables were measured on a scale from 0 to 100 except purchase behaviour, which is in dollars.

/* aware1.sas */
title 'Doughnut Shop Brand Awareness Study: Model 1';

data torus;
     infile '/folders/myfolders/431s15/timmy1.data.txt' firstobs=2;
     input id w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     label w1 = 'Brand Awareness 1'
           w2 = 'Brand Awareness 2'
           w3 = 'Ad Awareness 1'
           w4 = 'Ad Awareness 2'
           w5 = 'Interest 1'
           w6 = 'Interest 2'
           v1 = 'Purchase Intention 1'
           v2 = 'Purchase Intention 2'
           v3 = 'Purchase Behaviour 1'
           v4 = 'Purchase Behaviour 2';

/* F_BrAw  = True brand awareness
   F_AdAw  = True advertising awareness
   F_Inter = True interest in the product category
   F_PI    = True purchase intention
   F_PBeh  = True purchase behaviour */

proc calis vardef=n psummary; /* Print fit statistics only */
     var w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     lineqs
          F_PI   = gamma1 F_BrAw + gamma2 F_AdAw
                 + gamma3 F_Inter + epsilon1,
          F_PBeh = gamma4 F_Inter + beta F_PI + epsilon2,
          w1 = F_BrAw  + e1,
          w2 = F_BrAw  + e2,
          w3 = F_AdAw  + e3,
          w4 = F_AdAw  + e4,
          w5 = F_Inter + e5,
          w6 = F_Inter + e6,
          v1 = F_PI    + e7,
          v2 = F_PI    + e8,
          v3 = F_PBeh  + e9,
          v4 = F_PBeh  + e10;
     variance
          F_BrAw = phi11, F_AdAw=phi22, F_Inter=phi33,
          epsilon1=psi1, epsilon2=psi2,
          e1-e10 = 10 * omega__;
     cov
          F_BrAw F_AdAw = phi12, F_BrAw F_Inter = phi13,
          F_AdAw F_Inter = phi23;
     bounds phi11 phi22 phi33 psi1 psi2 omega01-omega10 > 0;

Output

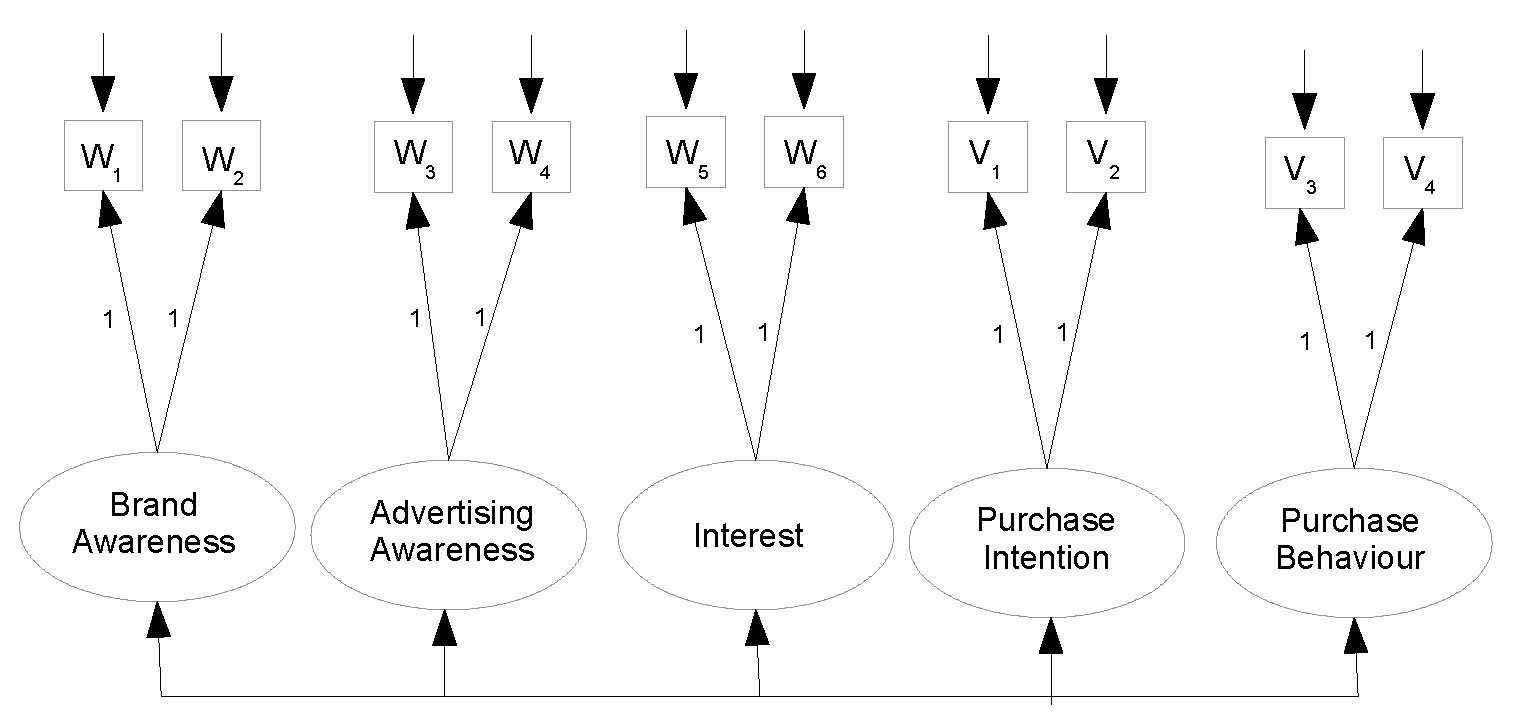

It didn't fit. Split the problem up into parts. Look first at the measurement model.

/* aware2.sas */
title 'Doughnut Shop Brand Awareness Study: Model 2 (Measurement only)';

data torus;
     infile '/folders/myfolders/431s15/timmy1.data.txt' firstobs=2;
     input id w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     label w1 = 'Brand Awareness 1'
           w2 = 'Brand Awareness 2'
           w3 = 'Ad Awareness 1'
           w4 = 'Ad Awareness 2'
           w5 = 'Interest 1'
           w6 = 'Interest 2'
           v1 = 'Purchase Intention 1'
           v2 = 'Purchase Intention 2'
           v3 = 'Purchase Behaviour 1'
           v4 = 'Purchase Behaviour 2';

proc calis vardef=n psummary; /* Print fit statistics only */
     var w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     lineqs
          w1 = F_BrAw  + e1,
          w2 = F_BrAw  + e2,
          w3 = F_AdAw  + e3,
          w4 = F_AdAw  + e4,
          w5 = F_Inter + e5,
          w6 = F_Inter + e6,
          v1 = F_PI    + e7,
          v2 = F_PI    + e8,
          v3 = F_PBeh  + e9,
          v4 = F_PBeh  + e10;
     variance
          F_BrAw F_AdAw F_Inter F_PI F_PBeh = 5*phivar__,
          e1-e10 = 10 * omega__;
     cov  F_BrAw F_AdAw F_Inter F_PI F_PBeh = 10*phicov__;
     bounds phivar1-phivar5 omega01-omega10 > 0;

Output

The measurement model does not fit. Try a true double measurement model, allowing covariances within sets.

/* aware3.sas */
title 'Doughnut Shop Brand Awareness Study';
title2 'Full double measuremtn model';

data torus;
     infile '/folders/myfolders/431s15/timmy1.data.txt' firstobs=2;
     input id w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     label w1 = 'Brand Awareness 1'
           w2 = 'Brand Awareness 2'
           w3 = 'Ad Awareness 1'
           w4 = 'Ad Awareness 2'
           w5 = 'Interest 1'
           w6 = 'Interest 2'
           v1 = 'Purchase Intention 1'
           v2 = 'Purchase Intention 2'
           v3 = 'Purchase Behaviour 1'
           v4 = 'Purchase Behaviour 2';

proc calis vardef=n psummary; /* Print fit statistics only */
     var w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     lineqs
          w1 = F_BrAw  + e1,
          w2 = F_BrAw  + e2,
          w3 = F_AdAw  + e3,
          w4 = F_AdAw  + e4,
          w5 = F_Inter + e5,
          w6 = F_Inter + e6,
          v1 = F_PI    + e7,
          v2 = F_PI    + e8,
          v3 = F_PBeh  + e9,
          v4 = F_PBeh  + e10;
     variance
          F_BrAw F_AdAw F_Inter F_PI F_PBeh = 5*phivar__,
          e1-e10 = 10 * omega__;
     cov  F_BrAw F_AdAw F_Inter F_PI F_PBeh = 10*phicov__,
          e1 e3 e5 e7 e9  = 10 * O1cov__,
          e2 e4 e6 e8 e10 = 10 * O2cov__;
     bounds phivar1-phivar5 omega01-omega10 > 0;

Output

Still does not fit. Also, get this warning in the log file:

WARNING: Although all predicted variances for the observed and latent
         variables are positive, the corresponding predicted covariance matrix
         is not positive definite. It has one negative eigenvalue.

Testing the covariances with an invalid likelihood ratio test:

> G2 = 76.3802 - 33.3097
> 1-pchisq(G2,df=20)
[1] 0.002000914

his shows why you should not believe a LR based on a full model that does not fit. Later we will conclude that those covariances are truly zero.

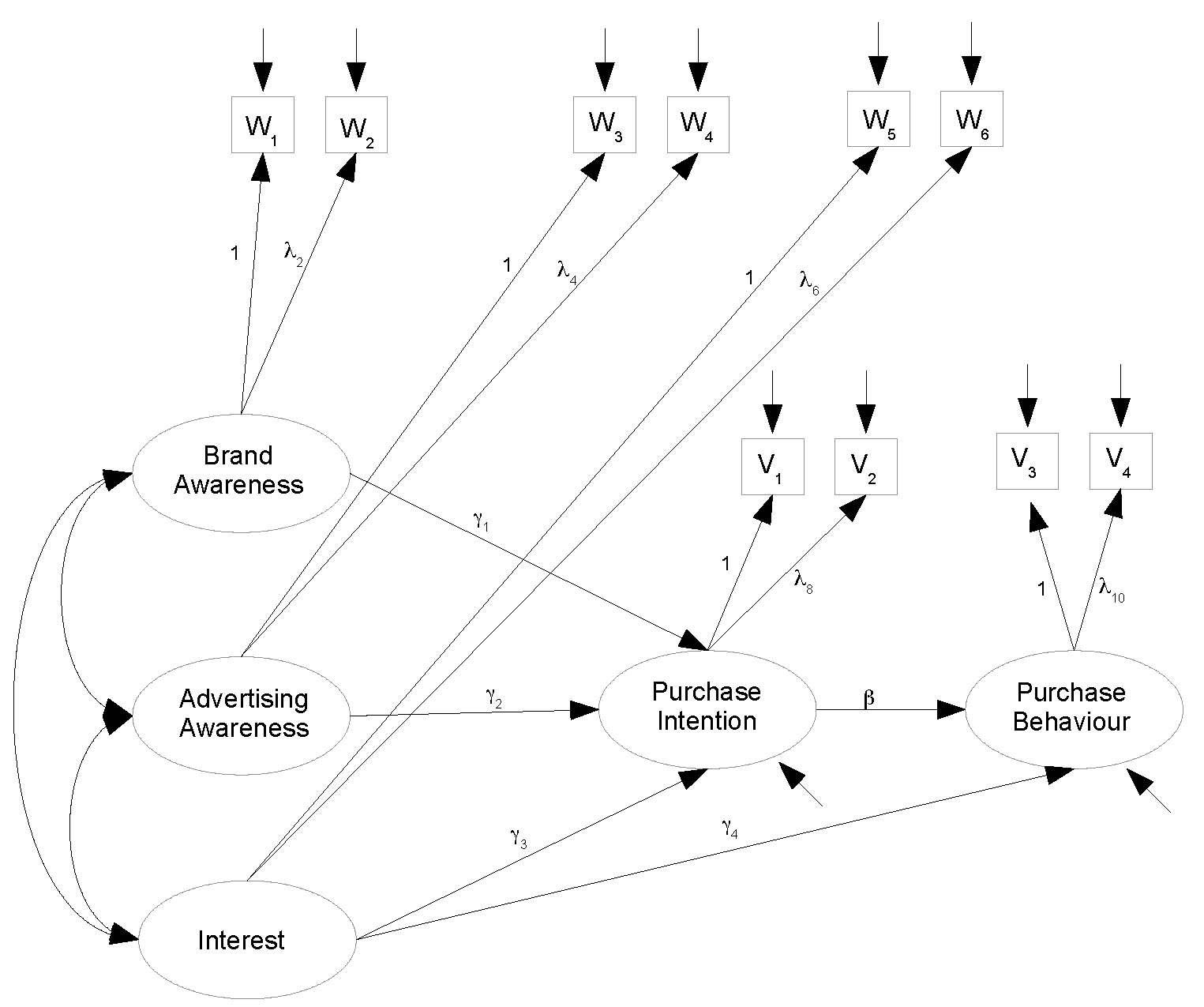

Consider that the two measurements of each latent variable are DIFFERENT. Maybe they're not really equivalent. Perhaps one in each set (say number 2) should have a coefficient not equal to one.

/* aware4.sas */
title 'Doughnut Shop Brand Awareness Study';
title2 'Full double measuremtn model';

data torus;
     infile '/folders/myfolders/431s15/timmy1.data.txt' firstobs=2;
     input id w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     label w1 = 'Brand Awareness 1'
           w2 = 'Brand Awareness 2'
           w3 = 'Ad Awareness 1'
           w4 = 'Ad Awareness 2'
           w5 = 'Interest 1'
           w6 = 'Interest 2'
           v1 = 'Purchase Intention 1'
           v2 = 'Purchase Intention 2'
           v3 = 'Purchase Behaviour 1'
           v4 = 'Purchase Behaviour 2';

proc calis vardef=n psummary; /* Print fit statistics only */
     var w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     lineqs
          w1 =         F_BrAw  + e1,
          w2 = lambda2*F_BrAw  + e2,
          w3 =         F_AdAw  + e3,
          w4 = lambda4*F_AdAw  + e4,
          w5 =         F_Inter + e5,
          w6 = lambda6*F_Inter + e6,
          v1 =         F_PI    + e7,
          v2 = lambda8*F_PI    + e8,
          v3 =          F_PBeh  + e9,
          v4 = lambda10*F_PBeh  + e10;
     variance
          F_BrAw F_AdAw F_Inter F_PI F_PBeh = 5*phivar__,
          e1-e10 = 10 * omega__;
     cov  F_BrAw F_AdAw F_Inter F_PI F_PBeh = 10*phicov__;
     bounds phivar1-phivar5 > 0;

Output

The measurement model fits! Now combine it with the latent variable model.

/* aware5.sas */
title 'Doughnut Shop Brand Awareness Study: Model 5';
title2 'Put latent variable model back in';

data torus;
    infile '/folders/myfolders/431s15/timmy1.data.txt' firstobs=2;
     input id w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     label w1 = 'Brand Awareness 1'
           w2 = 'Brand Awareness 2'
           w3 = 'Ad Awareness 1'
           w4 = 'Ad Awareness 2'
           w5 = 'Interest 1'
           w6 = 'Interest 2'
           v1 = 'Purchase Intention 1'
           v2 = 'Purchase Intention 2'
           v3 = 'Purchase Behaviour 1'
           v4 = 'Purchase Behaviour 2';

proc calis pshort nostand vardef=n pcorr ;
     var w1 w2 w3 w4 w5 w6 v1 v2 v3 v4;
     lineqs
          F_PI   = gamma1 F_BrAw + gamma2 F_AdAw
                 + gamma3 F_Inter + epsilon1,
          F_PBeh = gamma4 F_Inter + beta F_PI + epsilon2,
          w1 = F_BrAw  + e1,
          w2 = lambda2*F_BrAw  + e2,
          w3 = F_AdAw  + e3,
          w4 = lambda4*F_AdAw  + e4,
          w5 = F_Inter + e5,
          w6 = lambda6*F_Inter + e6,
          v1 = F_PI    + e7,
          v2 = lambda8*F_PI    + e8,
          v3 = F_PBeh  + e9,
          v4 = lambda10*F_PBeh  + e10;
     variance
          F_BrAw = phi11, F_AdAw=phi22, F_Inter=phi33,
          epsilon1=psi1, epsilon2=psi2,
          e1-e10 = 10 * omega__;
     cov
          F_BrAw F_AdAw = phi12, F_BrAw F_Inter = phi13,
          F_AdAw F_Inter = phi23;
     bounds phi11 phi22 phi33 psi1 psi2 omega01-omega10 > 0;

/* The lambda coefficients linking latent variables to their measurements
are different from zero. They'd better be! But which of them are different
from one? */
     simtests not_one = [d2 d4 d6 d8 d10];
              d2 = lambda2-1; d4 = lambda4-1; d6 = lambda6-1;
              d8 = lambda8-1; d10 = lambda10-1;

Output
